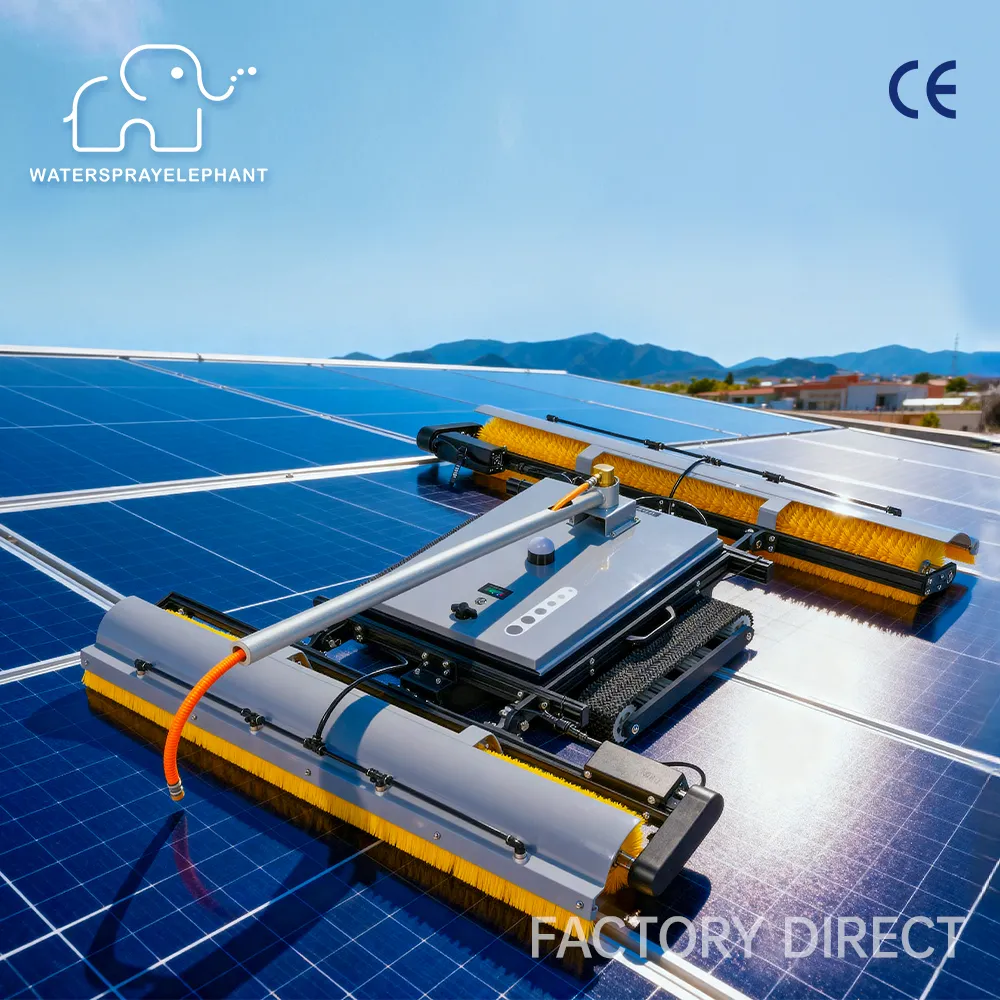

R1 DC Double/Single Head Solar Crawler Cleaning Robot
The R1 is a battery-powered crawler robot designed for wet or dry cleaning on commercial and utility-scale photovoltaic arrays.
- Supports working angles up to 20°
- 150–200 m wireless remote-control range
- Omni-directional anti-drop sensing
- 6–8 hour runtime with dual lithium batteries
Contact Us for Pricing
Interested in this product? Contact us now for detailed pricing and product information.
Product Details
01 · POSITION
Product positioning
- Model: R1
- Solar Panel Cleaning Robot
- Professional photovoltaic O&M equipment
- Configuration matched to the actual project
02 · DATA
Quick parameters
- Brush material
- Nylon / PBT
- Cleaning type
- Dry / water
- Operating temperature
- -20°C to 50°C
- Working angle
- ≤20°
- Maximum span
- ≤20 cm
03 · COMPATIBILITY
Purchase compatibility
- Array fit
- For compatible commercial or utility modules with working angles up to 20°.
- Gap limit
- Published maximum crossing span is 20 cm; frame shape and height differences still require review.
- Power choice
- Battery power supports cable-free movement, with a published runtime of 6-8 hours.
- Cleaning mode
- Wet or dry cleaning is available; select the mode according to soiling and module conditions.
04 · SUPPLY
Supply scope
- Equipment configuration review
- Voltage, plug and accessory confirmation
- Operating documentation
- Parts and training options
PRODUCT OVERVIEW
Why R1 is built for this job
Wet and dry cleaning in one platform
Designed to improve cleaning coverage and simplify routine operation.
Omni-directional anti-drop sensing
Supports safer equipment control and a more consistent field workflow.
150-200 m wireless remote control
Helps match the equipment to site access, power and labor conditions.
All-direction movement on PV modules
Must be confirmed against the actual module geometry and operating requirements.
STRUCTURED PRODUCT DATA
R1 technical specifications
Use these catalog values for initial comparison. Final suitability requires confirmation against the actual array and operating conditions.
- Brush material
- Nylon / PBT
- Cleaning type
- Dry / water
- Operating temperature
- -20°C to 50°C
- Working angle
- ≤20°
- Maximum span
- ≤20 cm
- Operating voltage
- 24 V
- Power supply
- 22.2-24 V lithium battery, 26 Ah × 2
- Runtime
- 6-8 hours
- Brush speed
- 260 RPM
- Cleaning width
- 1100 mm; 1500 mm optional
- Travel speed
- 20 m/min
- Maximum water use
- 1.84 L/min
- Dimensions
- 83 × 68 × 31.5 cm
- Weight
- 48.3 kg including battery
APPLICATIONS
Where R1 fits
Application fit depends on site geometry, access, soiling, utilities and the cleaning workflow.
Utility solar farms
Flexible cleaning across large module fields with an operator controlling direction from a safe distance.
Commercial ground arrays
Useful where row geometry varies and a permanently installed robot is not preferred.
Water-limited sites
Dry-cleaning capability supports suitable loose-dust conditions after site assessment.
MANUFACTURING & QUALITY
Control the product before it reaches the site
Production and quality requirements should be confirmed against the final model configuration and purchase specification.
Integrated manufacturing workflow
Structural components, electrical control, motor systems and final assembly are coordinated around the product design.
Parts inspectionAssemblyFunctional test
Configuration and quality review
Model, voltage, plug, accessories, operating environment and delivery documentation are checked before confirmation.
Specification reviewOperation checkDelivery record
WHY WATERSPRAYELEPHANT
More than a machine specification
Integrated product engineering
Mechanical, electrical and control development are coordinated for photovoltaic cleaning equipment.
PV-specific brush development
Brush material, contact behavior and wet or dry operation are engineered around solar-module cleaning.
Design-to-production coordination
Product design, component selection, assembly and functional checks follow one connected workflow.
Full-scenario technology base
Manual, powered, remote-controlled and autonomous platforms support different project scales.
DOCUMENTATION & VALIDATION
Build confidence before ordering
Product-specific certificates and named project outcomes should only be published after document and permission review.
Document package to confirm
- Model datasheet
- Final configuration record
- Packing list
- Operation and maintenance instructions
Project validation before purchase
- Compatibility review
- Sample or test plan where applicable
- Acceptance checklist
- Authorized case references when available
Content reviewer: WaterSprayElephant Product Engineering Team ·
PRODUCT FAQ
Frequently asked questions about R1
What PV panel angle can R1 work on?
R1 is specified for working angles up to 20 degrees. Actual suitability also depends on module surface, weather, track condition and array geometry.
Can R1 cross gaps between modules?
The published maximum span is 20 cm. Gap direction, height difference, frame shape and edge condition must be reviewed before operation.
How long does the battery run?
The catalog states a typical runtime of 6-8 hours with two 26 Ah battery packs. Real runtime varies with slope, brush load, travel and operating conditions.
Can it clean without water?
Yes. R1 supports dry and water-cleaning modes. Dry cleaning should be selected only when the dust and module conditions are suitable.
