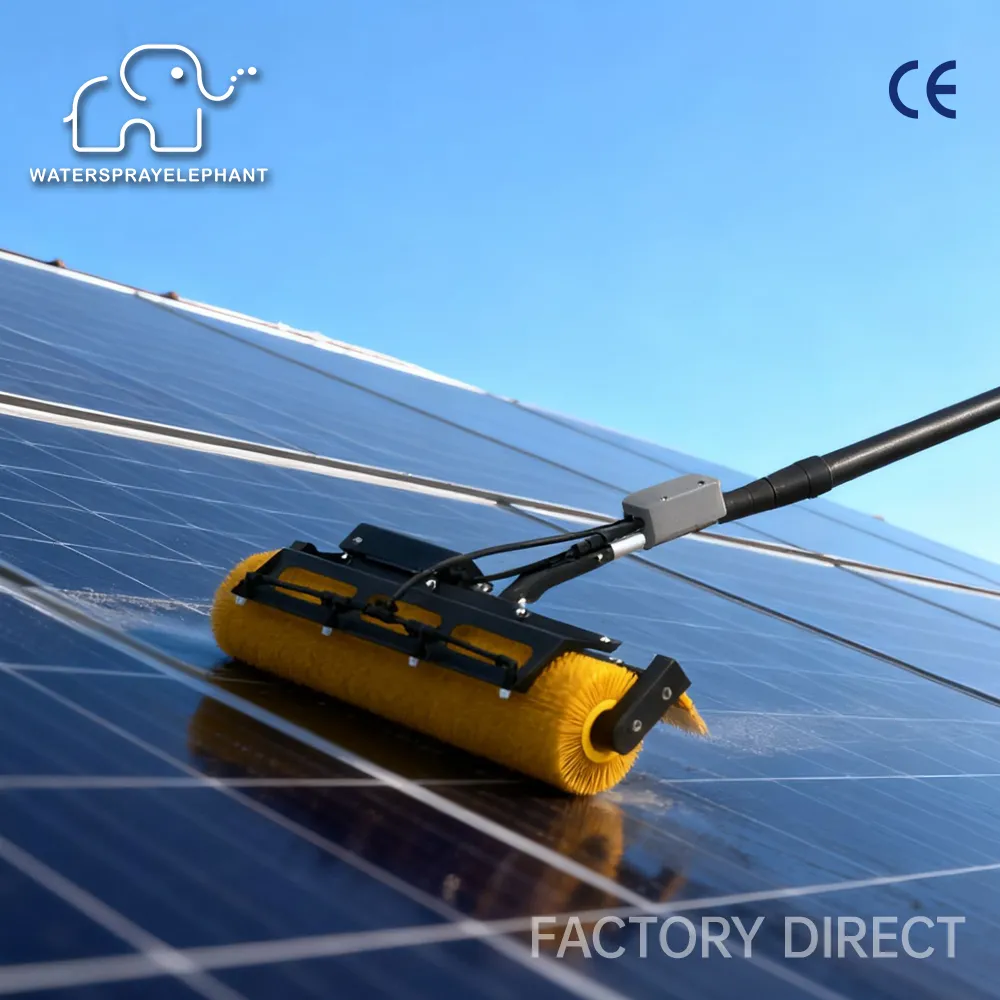

G4 Roller Brush Solar Panel Cleaning Machine
The G4 is a portable roller-brush cleaning machine designed for efficient wet or dry cleaning on 500–6,000 m² photovoltaic projects.
- 60 cm cleaning width
- Wet and dry cleaning modes
- AC, battery and dual-power options
- Brushless direct-drive motor with 260 RPM speed
Contact Us for Pricing
Interested in this product? Contact us now for detailed pricing and product information.
Product Details
01 · POSITION
Product positioning
- Model: G4
- Portable Solar Panel Cleaner
- Professional photovoltaic O&M equipment
- Configuration matched to the actual project
02 · DATA
Quick parameters
- Power supply
- AC 100-240 V / DC 22.2-24 V / AC+DC
- Telescopic pole
- 3.5 m, 5.5 m or 7.5 m
- Waterproof rating
- IP68
- Operating voltage
- 24 V
- Motor power
- 85 W; max. 175 W
03 · COMPATIBILITY
Purchase compatibility
- Project fit
- Recommended for approximately 500-6000 m² projects with a safe operator access route.
- Cleaning mode
- Supports wet or dry cleaning after reviewing dust, water and module conditions.
- Power choice
- Choose AC for continuous work, battery for mobility or dual power for both workflows.
- Reach choice
- Select a 3.5 m, 5.5 m or 7.5 m pole according to access distance and handling needs.
04 · SUPPLY
Supply scope
- Equipment configuration review
- Voltage, plug and accessory confirmation
- Operating documentation
- Parts and training options
PRODUCT OVERVIEW
Why G4 is built for this job
60 cm wide roller brush
Designed to improve cleaning coverage and simplify routine operation.
Wet and dry cleaning modes
Supports safer equipment control and a more consistent field workflow.
AC, battery or dual-power options
Helps match the equipment to site access, power and labor conditions.
Built-in brushless direct drive
Must be confirmed against the actual module geometry and operating requirements.
STRUCTURED PRODUCT DATA
G4 technical specifications
Use these catalog values for initial comparison. Final suitability requires confirmation against the actual array and operating conditions.
- Power supply
- AC 100-240 V / DC 22.2-24 V / AC+DC
- Telescopic pole
- 3.5 m, 5.5 m or 7.5 m
- Waterproof rating
- IP68
- Operating voltage
- 24 V
- Motor power
- 85 W; max. 175 W
- Cleaning type
- Dry / water
- Cleaning width
- 60 cm
- Maximum water flow
- 4 L/min
- Brush speed
- 260 RPM
- Runtime
- 4-5 hours
- Net weight
- 12.8 kg excluding battery
APPLICATIONS
Where G4 fits
Application fit depends on site geometry, access, soiling, utilities and the cleaning workflow.
Commercial rooftops
Wide linear cleaning on distributed arrays where an operator can work from a safe access route.
Ground-mounted C&I arrays
Portable cleaning across medium-sized sites without permanently installed equipment.
Mixed wet/dry conditions
Switch the cleaning method after reviewing dust, water and module conditions.
MANUFACTURING & QUALITY
Control the product before it reaches the site
Production and quality requirements should be confirmed against the final model configuration and purchase specification.
Integrated manufacturing workflow
Structural components, electrical control, motor systems and final assembly are coordinated around the product design.
Parts inspectionAssemblyFunctional test
Configuration and quality review
Model, voltage, plug, accessories, operating environment and delivery documentation are checked before confirmation.
Specification reviewOperation checkDelivery record
WHY WATERSPRAYELEPHANT
More than a machine specification
Integrated product engineering
Mechanical, electrical and control development are coordinated for photovoltaic cleaning equipment.
PV-specific brush development
Brush material, contact behavior and wet or dry operation are engineered around solar-module cleaning.
Design-to-production coordination
Product design, component selection, assembly and functional checks follow one connected workflow.
Full-scenario technology base
Manual, powered, remote-controlled and autonomous platforms support different project scales.
DOCUMENTATION & VALIDATION
Build confidence before ordering
Product-specific certificates and named project outcomes should only be published after document and permission review.
Document package to confirm
- Model datasheet
- Final configuration record
- Packing list
- Operation and maintenance instructions
Project validation before purchase
- Compatibility review
- Sample or test plan where applicable
- Acceptance checklist
- Authorized case references when available
Content reviewer: WaterSprayElephant Product Engineering Team ·
PRODUCT FAQ
Frequently asked questions about G4
What project size is G4 designed for?
The catalog recommends G4 for approximately 500-6000 m² solar projects. Actual productivity depends on layout and access.
Can G4 work without water?
Yes. G4 supports wet and dry cleaning configurations.
Which power version should I choose?
AC suits continuous work with cable access, battery supports mobility, and dual power provides both options. Site power and workflow should guide the choice.
How much does the machine weigh?
The published net weight is 12.8 kg excluding the battery. Pole length and accessories affect the complete working system.
